Hondata is the world leader in tuning Honda  engines and have many world records to prove this. Every map listed here has been comprehensively tuned for fuel, ignition and boost.

Listed here are dyno plots of several of the CARB maps provided the FlashPro.

How will the FlashPro will perform on a stock Civic 1.5 Turbo? The answer is superbly!

With a 100% stock 1.5 Civic Si you will benefit from:

• Improved turbo spool
• Raised boost limits
• Better throttle response
• Better mid range power and torque
• Removed speed limit
• No change in part throttle fuel economy
• World Class Datalogging - which will teach you a lot about your engine.

Base maps:

These are two of the base maps provided with the FlashPro. The maps shown are done with the 91 octane on a stock 1.5 Civic Si. The higher power curves are with 91 octane and the CARB maps. The maps are designed for two levels of torque; 240 lb-ft and 250 lb ft. CARB allows increasing the power levels if it remains emissions compliant. You are welcome to tune the torque tables to increase torque and power. The clutch can start slipping at greater than 260 lb-ft torque. The stock clutch in this car is fine for stock torque levels, but an increase of 25-30% can cause the clutch to slip. When a stronger clutch is available, Hondata will tune and release a higher torque CARB calibration.

22 Civic Si Carb 240

    225 HP and 240lb-ft torque

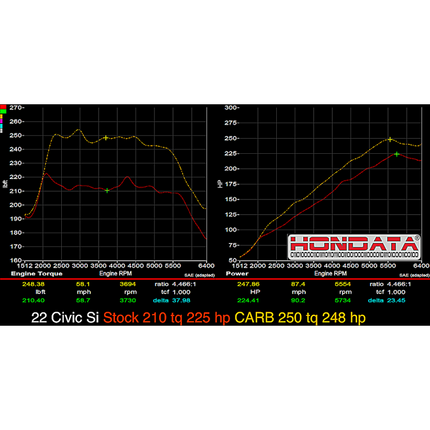

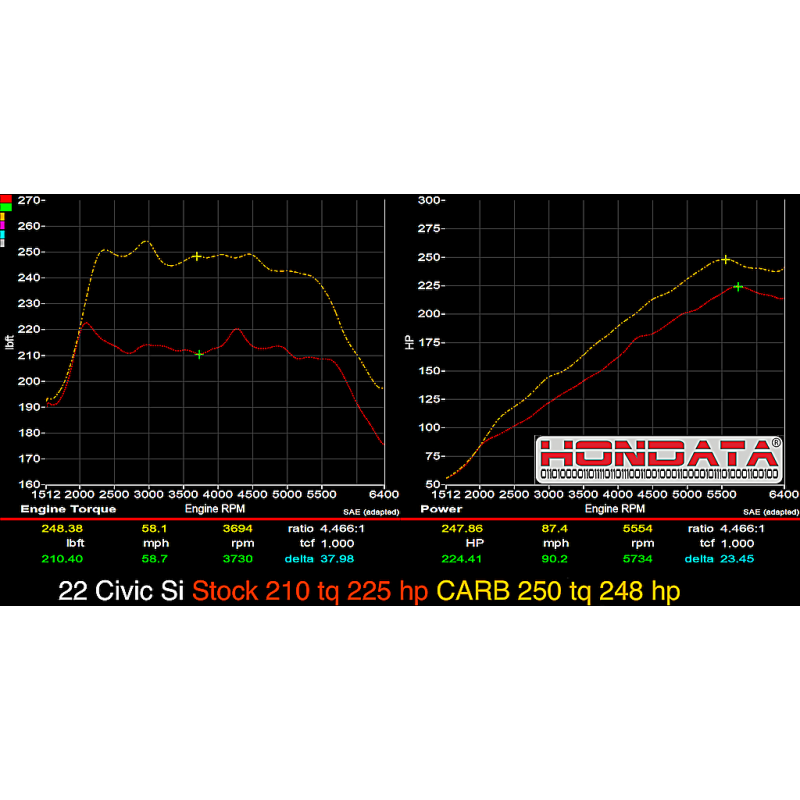

22 Civic Si Carb 250

    248 HP and 250 lb-ft torque

We've put together a series of training videos to describe the function and use of the FlashPro. View the videos in High Definition Full Screen to view the screen shots.

FlashPro Introduction

Hondata's new generation programming tool for the 06 - 09 US Civic Si, the Japanese 06-09 Civic Type R and the European 07-09 Civic Type R. A brief introduction.

FlashPro getting started

This video covers the installation the FlashPro Manager software, the USB drivers, software registration and upload of a calibration.

Live Tuning

One of the latest features added to FlashPro, live tuning gives you the ability to tune your Honda or Acura on the fly without switching off the engine. Live tuning simplifies part throttle tuning and significantly reduces the time and cost of tuning your car.

Race Calibration

Hondata has developed a Race calibration which allows you to tune with the MAP sensor and bypass the limitations of the AFM sensor. A look at the tuning principles for forced induction on a modern return-less fuel system.

Datalogging and Air fuel ratios

A look a the extensive datalogging capabilities of the FlashPro and the many ways in which to examine your engine data. We touch on the datalogging of the air fuel ratios and how you can use it to adjust your tuning.
